Ideal for high-performance rides, combining exceptional speed, durability, and a smooth rolling tread. They feature a puncture-resistant K-Shield layer with ceramic particles to increase tire life and ensure reliability for long distances. A reflective sidewall enhances urban visibility, making these e-Bike certified tires perfect for urban adventures.

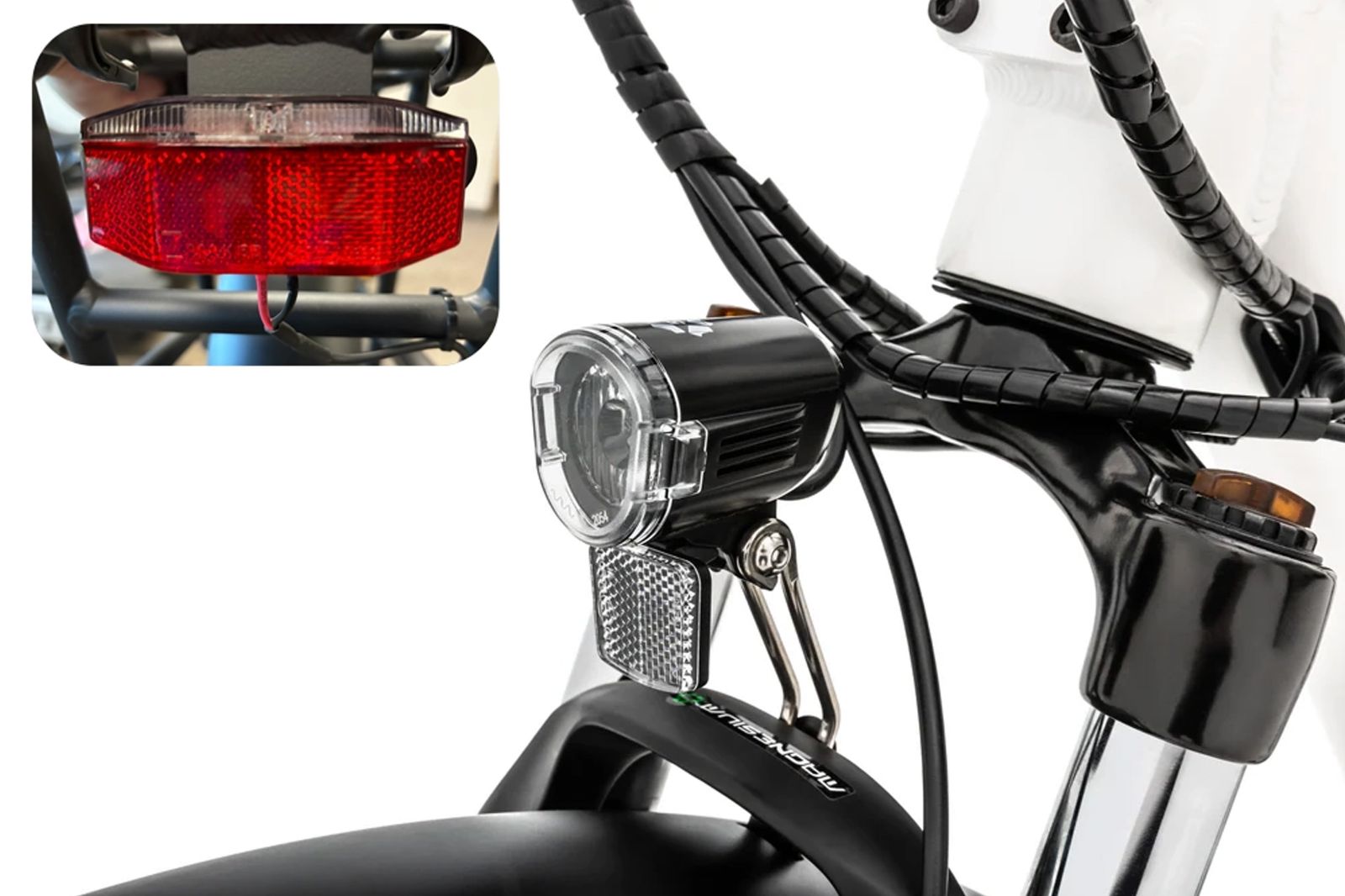

Night riding is a breeze with the front headlight easily activated from the front display console, ensuring visibility and safety.
The Touring e-Bike features rear reflectors that illuminate when turned on.
The Cikada App
Get a personalized riding experience with the Cikada app, available on iOS and Android

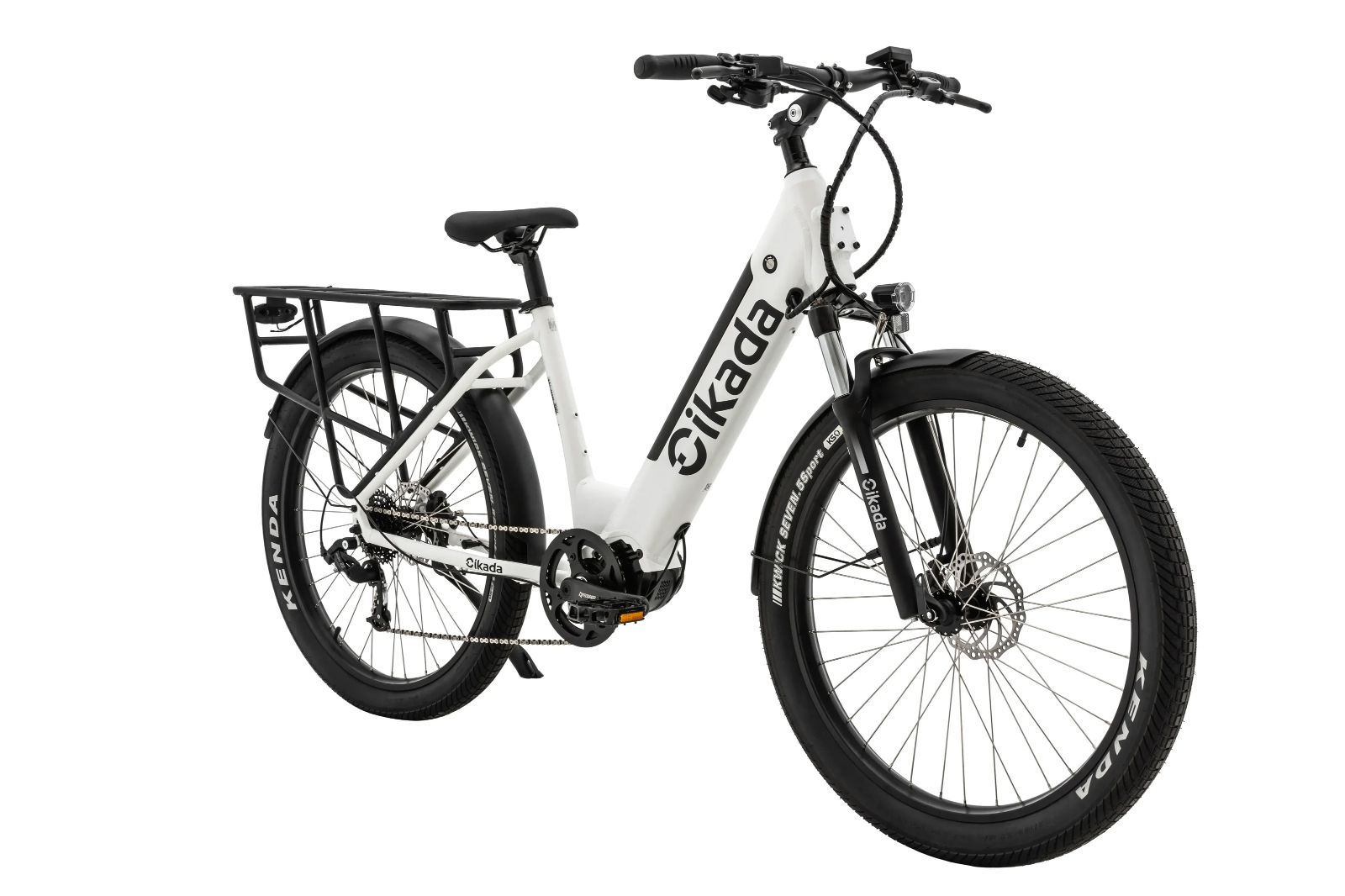

Specifications
Power System

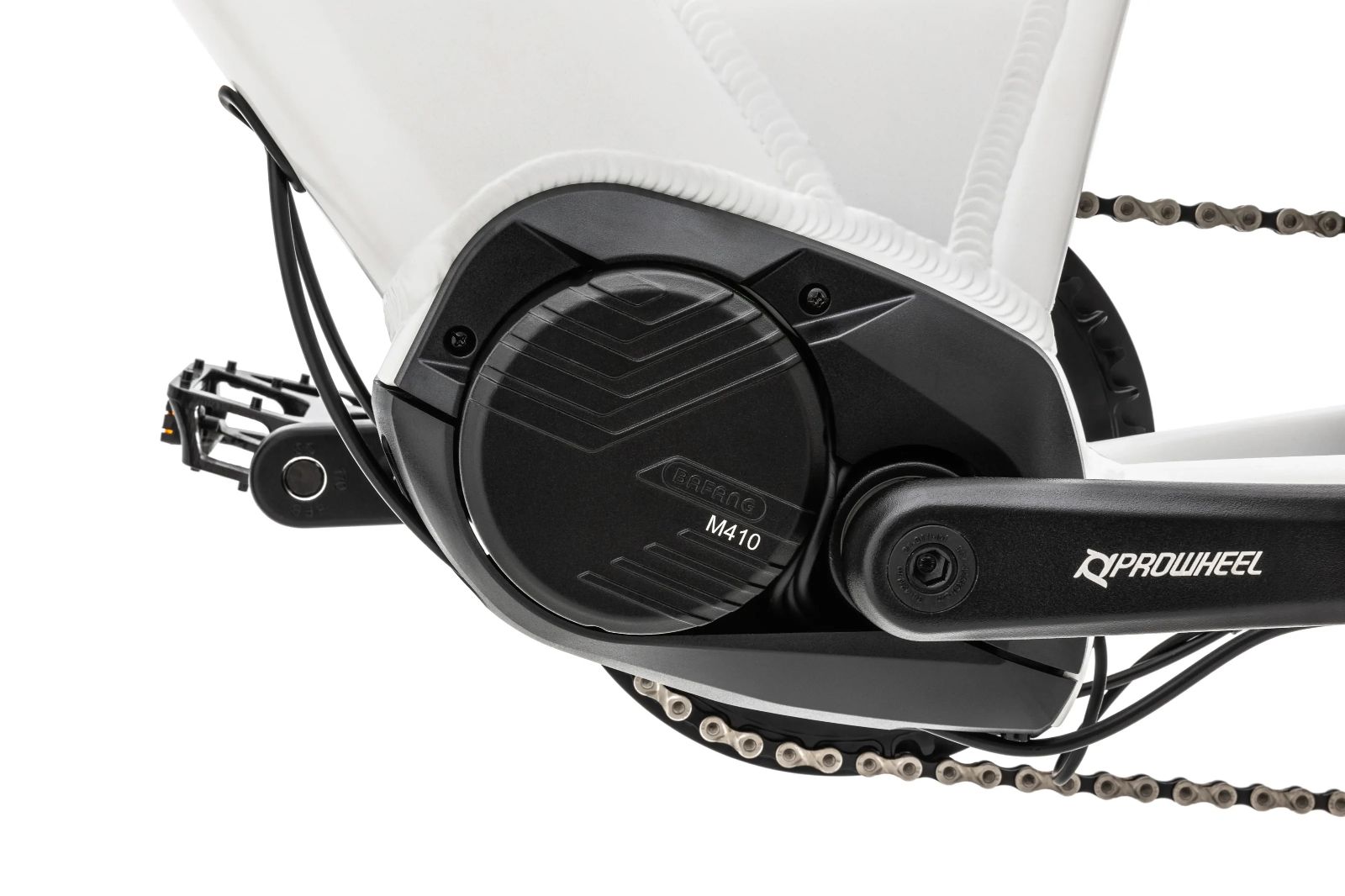

Motor: BaFang M410 350W mid-drive motor; 80Nm
Sensor: BaFang Integrated torque sensor

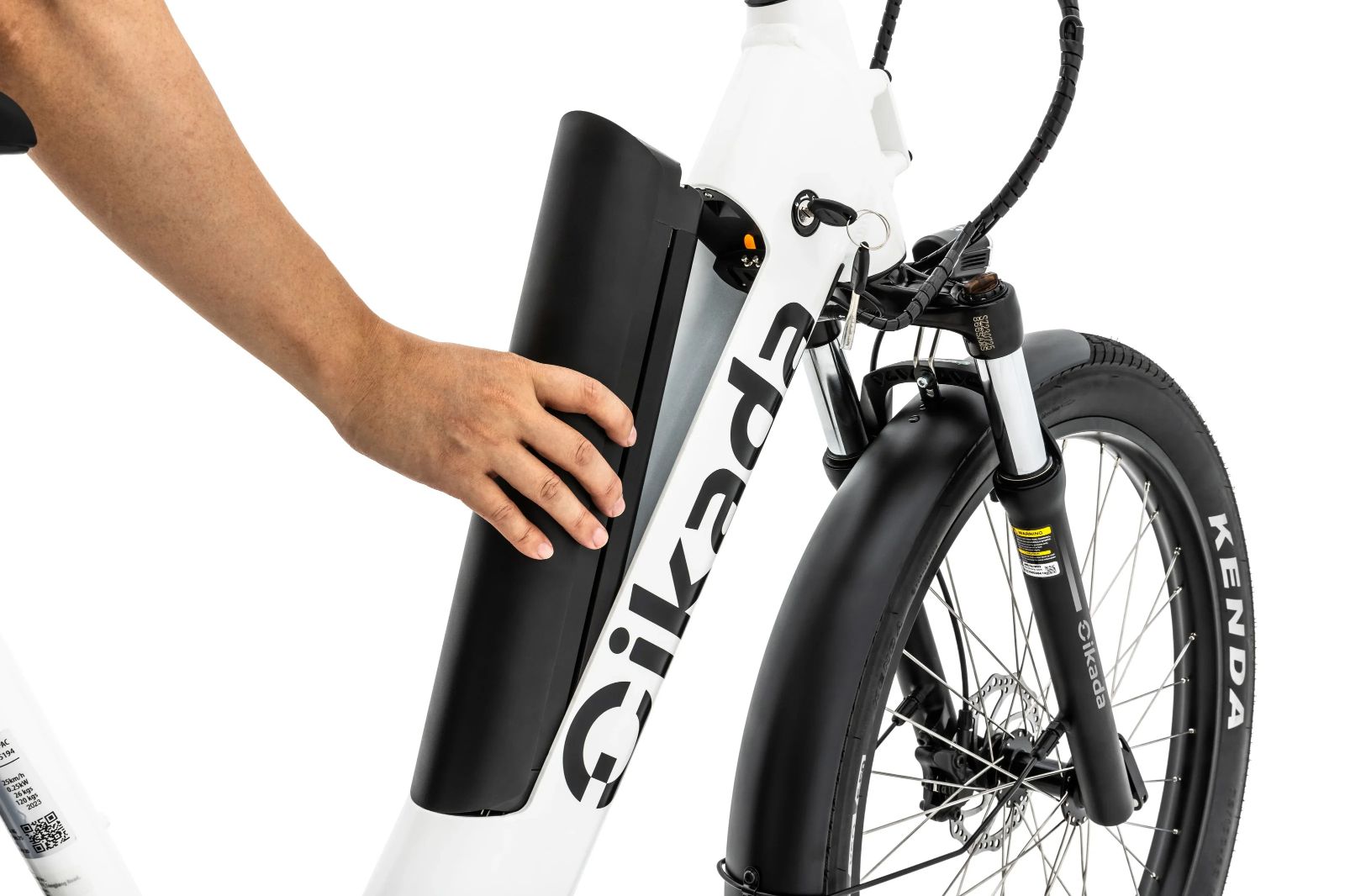

Battery: 720Wh (48V/15Ah) LG 21700 battery, 6-8hr charging time; removable for charging on or off the bike; integrated battery lock for added safety

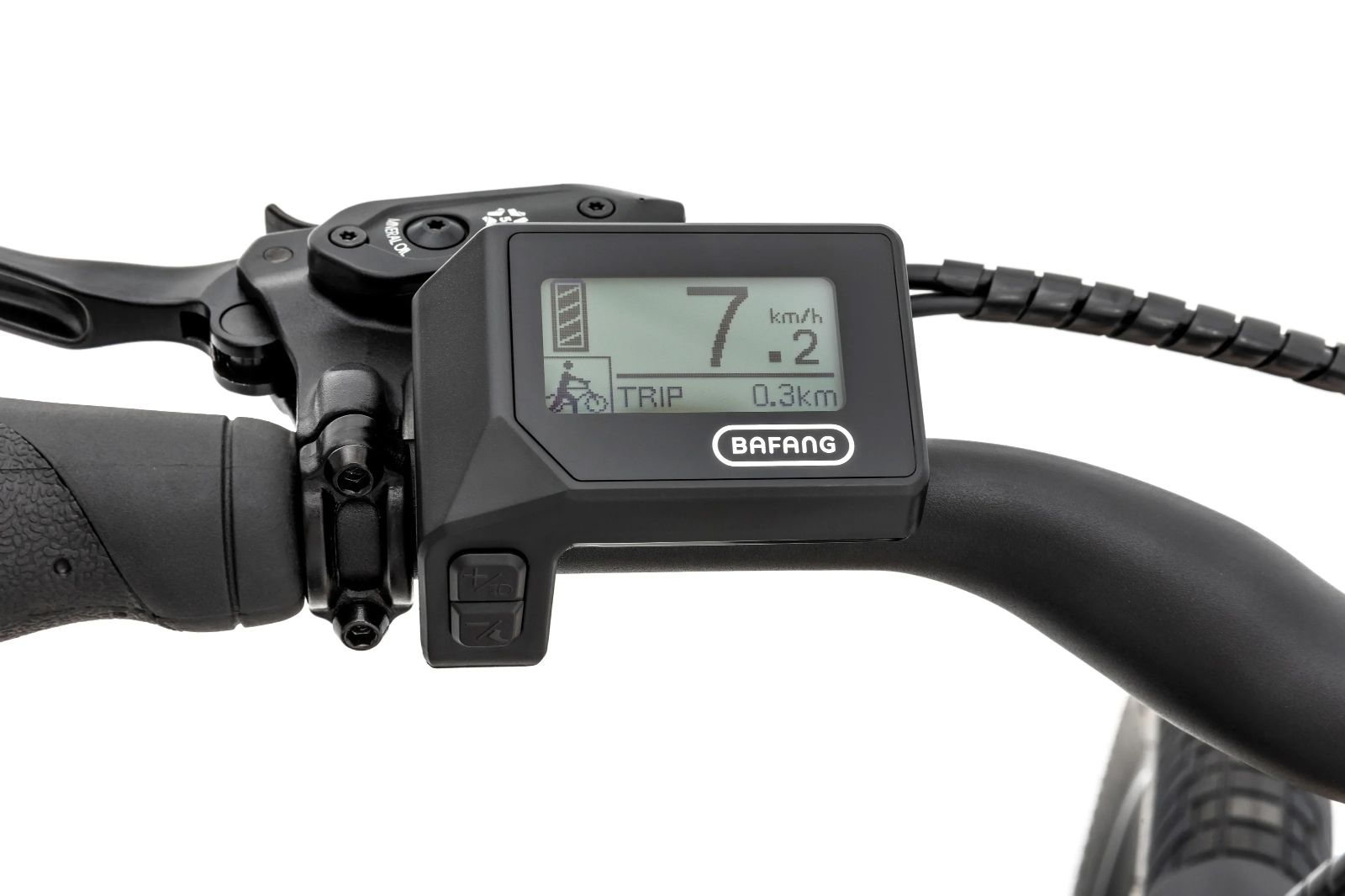

Display: BaFang with Bluetooth (5 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view)
Frameset
Frame: 6061 aluminum low step frame, 27.5"

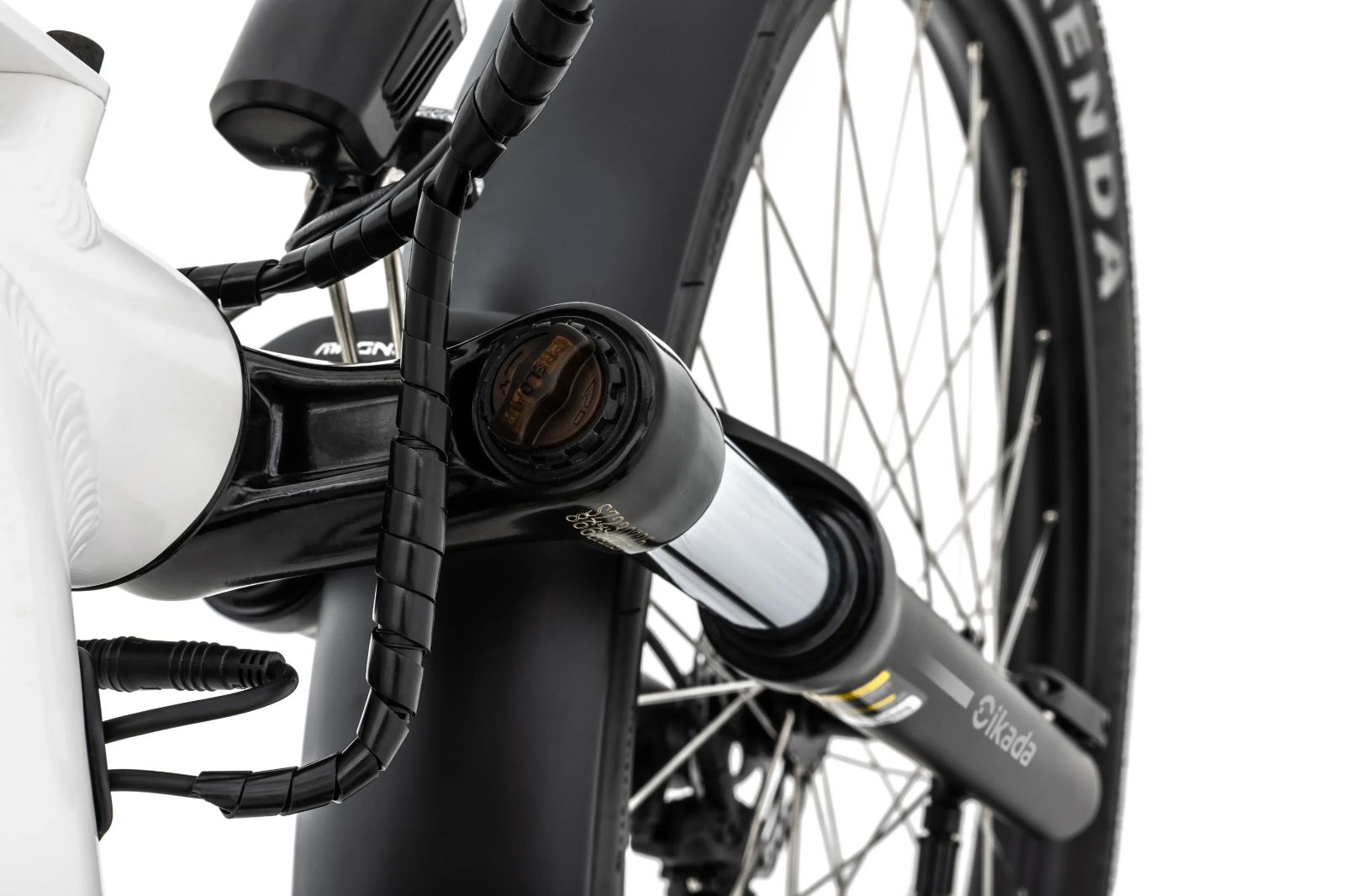

Fork: ZOOM suspension fork, 10mm x 110mm (0.4” x 4.3”), travel: 80mm (3.1”)
Wheels

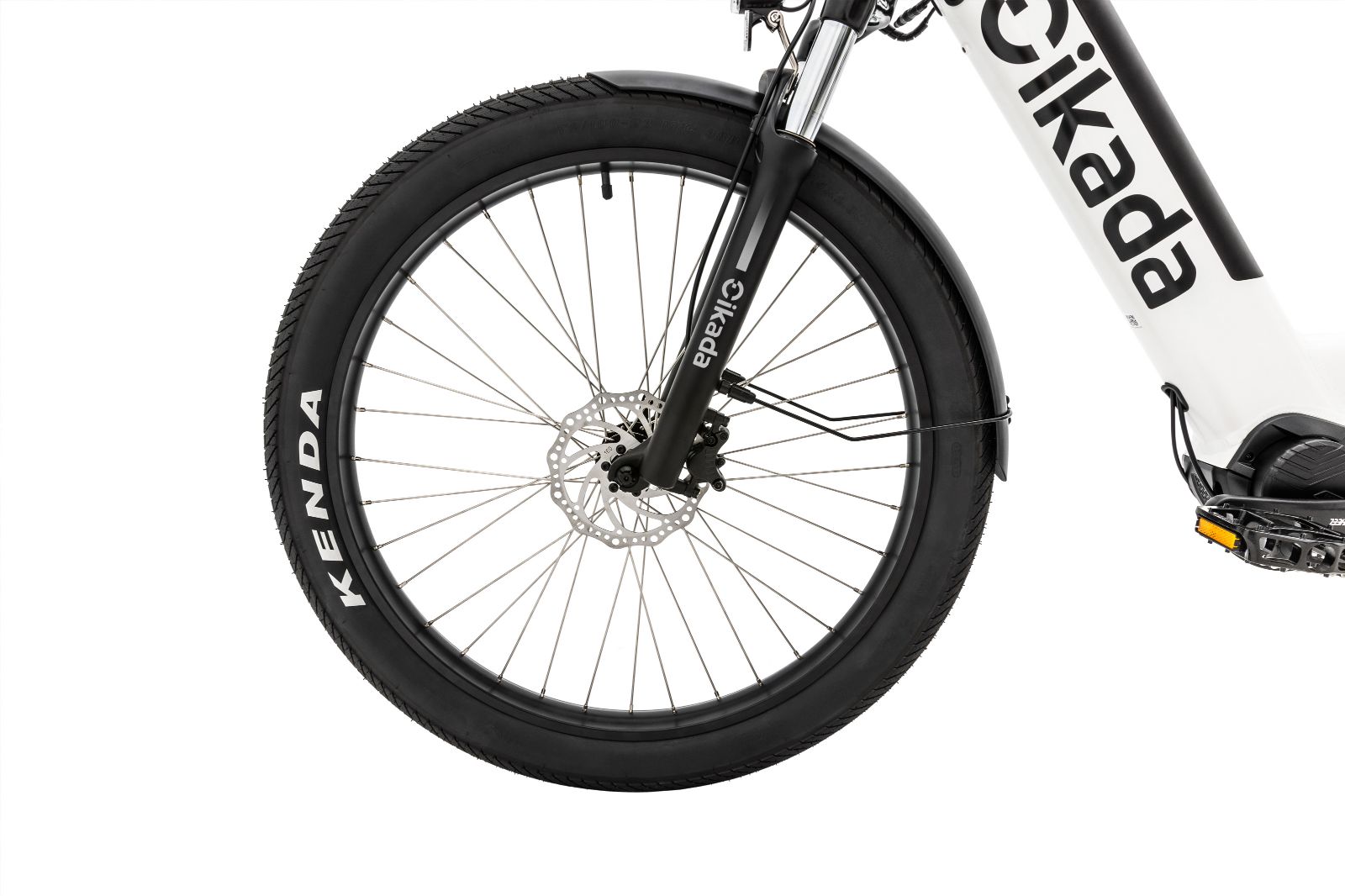

Tires: Kenda Kwick Seven.5 Sport, anti-puncture with a reflector strip, 27.5*2.8"
Rims: Alloy 27.5”, double wall
Inner Tubes: Kenda A/V
Front Hub: Alloy, 13G spokes x3/8x100mm O.L.D.
Rear Hub: Alloy, 13G spokes x3/8x36Hx138mm O.L.D.
Interactivity
Compatible Applications: Cikada app (riding display/ride summary/ride history)
Displayed Data: Real-time speed/current time/battery capacity
Ride Summary: Ride date and time/route/total distance/ total time/average speed/maximum speed/ average HR/maximum HR/calories burned/ CO2 reduced/ speed graph/ HR graph
Ride History: Total distance/total time/ CO2 reduced/ total rides
Drive Train
Crankset: Prowheel 44T 170mm (6.7”), with chain cover
Shift Lever: Microshift TS-39 R, thumb shifters
Throttle: Twist style
Rear Derailleur: Microshift RD-M26
Cassette: Microshift, 8 speed, 11T/34T
Chain: KMC, e8S
Pedals: 9/16” steel axle with reflectors, size: 112mm x 108mm (4.4” x 4.3”)
Components

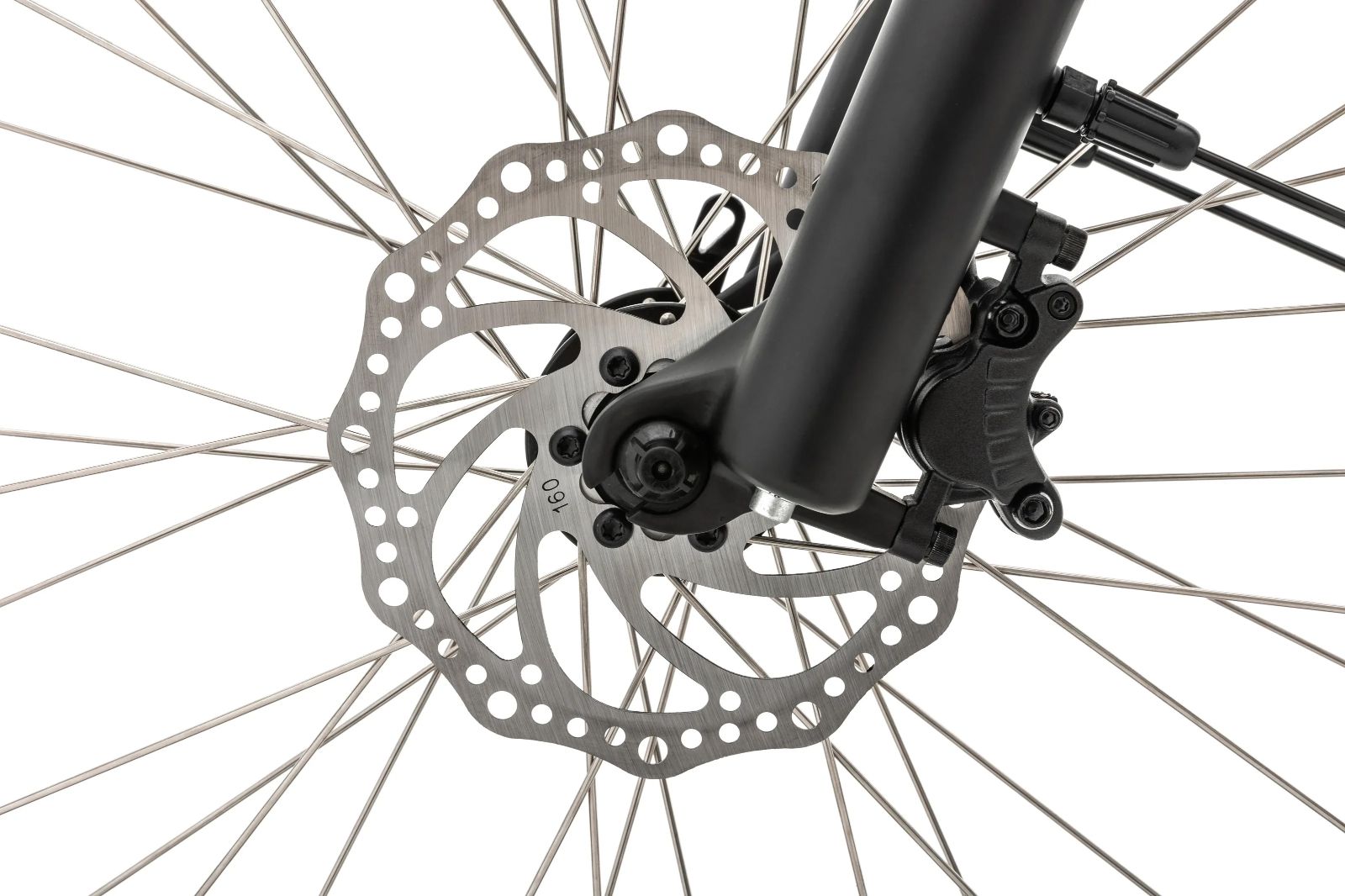

Brakes: Hydraulic disc brakes, rotor 160mm (6.3”); cut off power function
Handlebar: ZOOM, aluminum, rise bar; width 680mm (27”), barbore 31.8mm (1.25”)

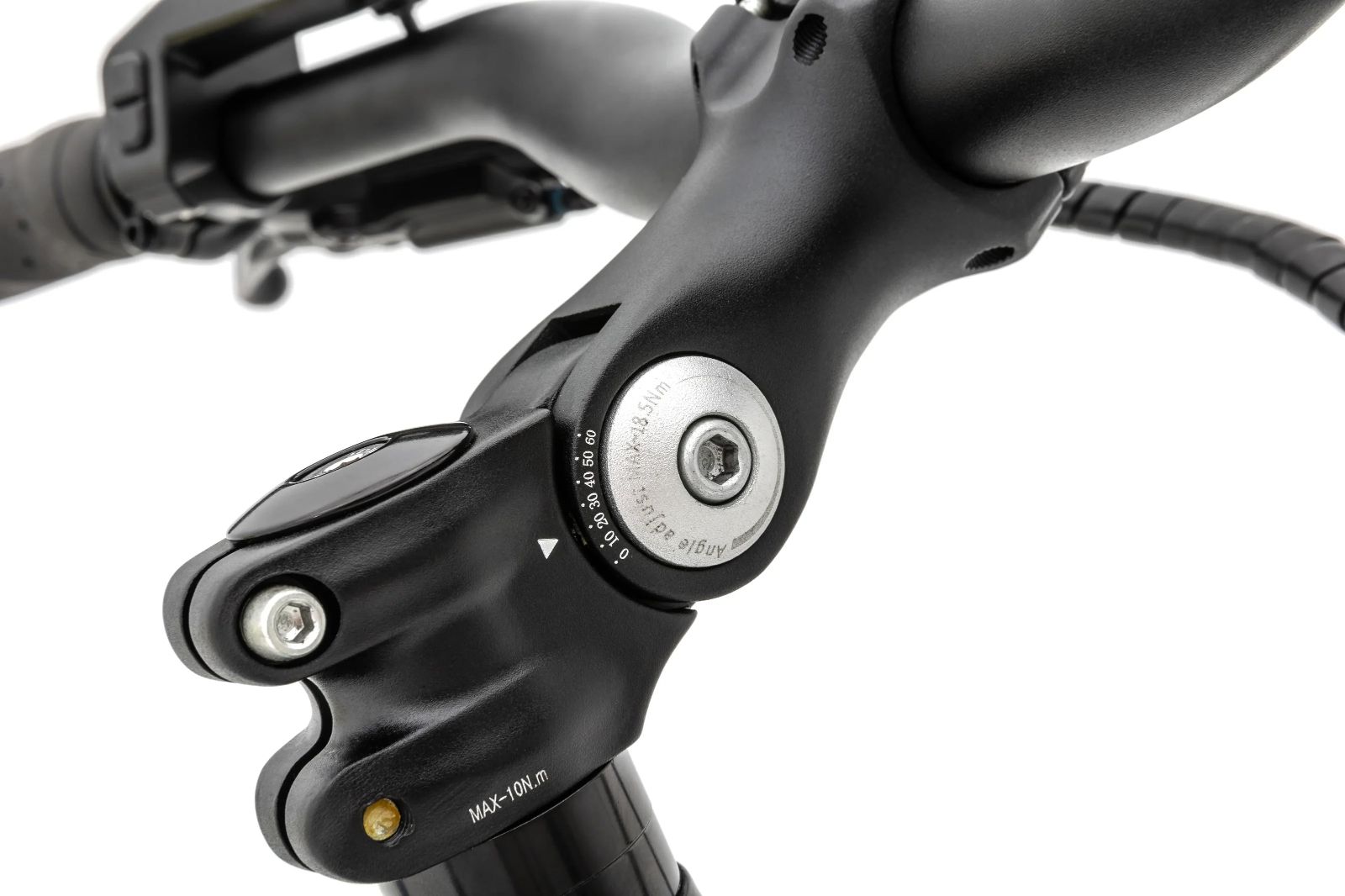

Stem: ZOOM, adjustable aluminum; extension 105mm (4”), barbore 31.8mm (1.25”)
Saddle: Anatomic polyurethane saddle with steel seat rail
Seatpost: ZOOM, aluminum (30.9mm x 250mm/ 1.2” x 10” for size S/M, 30.9mm x 300mm/ 1.2” x 12” for size M/L)
Grips: Velo gel Bottom Bracket: BB73
Additional Information
NW/GW: 30kg (66lb), 44kg (97lb)
Maximum User Weight: 140kg (309lbs)
Size Options
Small/Medium: 19” (48cm) for riders between 5’2”-5’8” (157cm - 173cm) in height
Medium/Large: 21” (53cm) for riders between 5’5”-6’4” (165cm - 193cm) in height
Safety Features
Front Headlight: on/off (operated via console)
Rear Reflector: Illuminates
Bell
Battery Lock
Power Cut-off: once braking system is activated
Speed Sensor: allows for a maximum speed of 32 km/h
Password for Console: required to access e-Bike data
Fender Guards
Kickstand
Touring e-Bike Geometry
